Project Management V Model Circles Decomposition Implementation Verification Testing

About this template

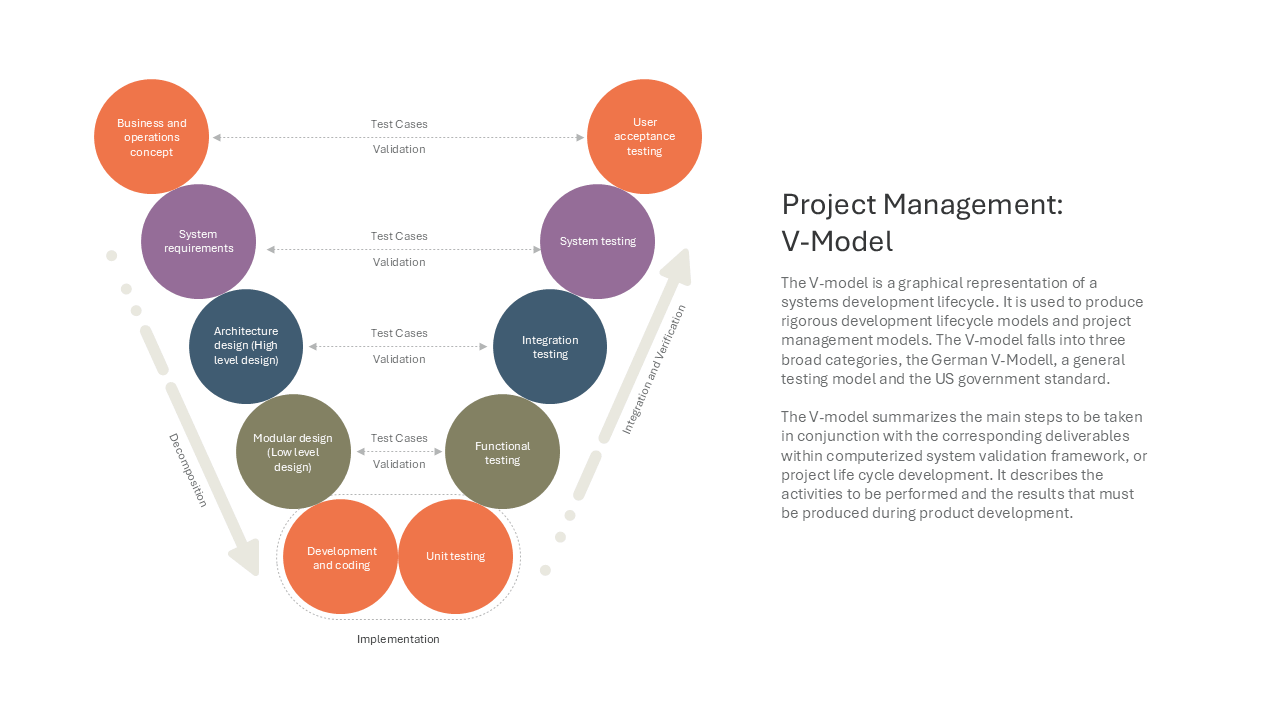

This slide lays out the V-model as a V of 10 circles, with design stages on the left, implementation at the bottom and matching test stages on the right. Each left-hand level is tied to its test level by a dotted arrow labeled test cases and validation. Large arrows mark decomposition on the way down and integration and verification on the way up. A text panel beside the diagram holds a title and two paragraphs of explanation. Use it to present a systems development lifecycle, a software testing approach or a validation framework. Circle labels, colors, arrows and text can all be edited.
