V-Model SDLC with Verification and Validation

About this template

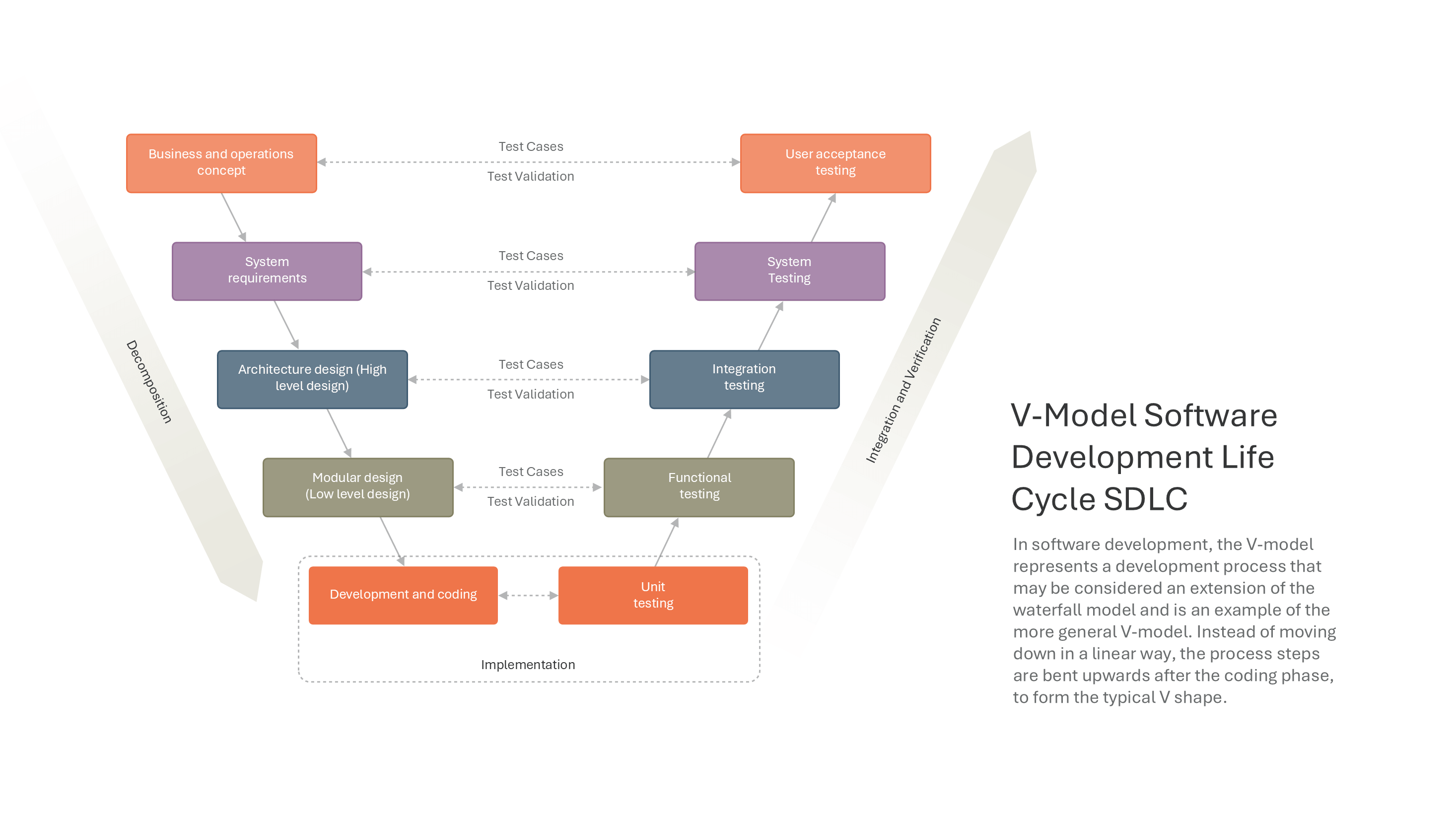

This slide lays out the V-model as two descending and ascending arms, with each design stage on the left linked by a dotted line to its matching test stage on the right. Four pairs run from business concept down to modular design and from user acceptance testing down to functional testing. Development and coding and unit testing sit together in a dashed Implementation box at the bottom point. Each pair is labelled Test Cases and Test Validation, and the two side arrows are named Decomposition and Integration and Verification. A title and a paragraph on the waterfall model are placed beside the diagram. Use it to explain SDLC phases, plan testing or train teams. All text, colours and shapes can be edited.
